How-To: Set up Dash0 for distributed tracing

Set up Dash0 for distributed tracing

Dapr captures metrics, traces, and logs that can be sent directly to Dash0 through the OpenTelemetry Collector. Dash0 is an OpenTelemetry-native observability platform that provides comprehensive monitoring capabilities for distributed applications.

Configure Dapr tracing with the OpenTelemetry Collector and Dash0

By using the OpenTelemetry Collector with the OTLP exporter to send data to Dash0, you can configure Dapr to create traces for each application in your Kubernetes cluster and collect them in Dash0 for analysis and monitoring.

Prerequisites

A running Kubernetes cluster with kubectl installed
Helm v3+
Dapr installed in the cluster
A Dash0 account (Get started with a 14-day free trial)
Your Dash0 Auth Token and OTLP/gRPC endpoint (find both under Settings → Auth Tokens and Settings → Endpoints)

Configure the OpenTelemetry Collector

Create a namespace for the Collector

kubectl create namespace opentelemetry

Create a Secret with your Dash0 Auth Token and Endpoint

kubectl create secret generic dash0-secrets \
  --from-literal=dash0-authorization-token="<your_auth_token>" \
  --from-literal=dash0-endpoint="<your_otlp_grpc_endpoint>" \
  --namespace opentelemetry

Add the OpenTelemetry Helm repo (once)

helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
helm repo update

Create values.yaml for the Collector

This config:

Reads token + endpoint from the Secret via env vars
Enables OTLP receivers (gRPC + HTTP)
Sends traces, metrics, and logs to Dash0 via OTLP/gRPC with Bearer auth

mode: deployment
fullnameOverride: otel-collector
replicaCount: 1

image:
  repository: otel/opentelemetry-collector-k8s

extraEnvs:
  - name: DASH0_AUTHORIZATION_TOKEN
    valueFrom:
      secretKeyRef:
        name: dash0-secrets
        key: dash0-authorization-token
  - name: DASH0_ENDPOINT
    valueFrom:
      secretKeyRef:
        name: dash0-secrets
        key: dash0-endpoint

config:
  receivers:
    otlp:
      protocols:
        grpc: {}
        http: {}

  processors:
    batch: {}

  exporters:
    otlp/dash0:
      auth:
        authenticator: bearertokenauth/dash0
      endpoint: ${env:DASH0_ENDPOINT}

  extensions:
    bearertokenauth/dash0:
      scheme: Bearer
      token: ${env:DASH0_AUTHORIZATION_TOKEN}
    health_check: {}

  service:
    extensions:
      - bearertokenauth/dash0
      - health_check
    pipelines:
      traces:
        receivers: [otlp]
        processors: [batch]
        exporters: [otlp/dash0]
      metrics:
        receivers: [otlp]
        processors: [batch]
        exporters: [otlp/dash0]
      logs:
        receivers: [otlp]
        processors: [batch]
        exporters: [otlp/dash0]

Install/upgrade the Collector with Helm

helm upgrade --install otel-collector open-telemetry/opentelemetry-collector \
  --namespace opentelemetry \
  -f values.yaml

Configure Dapr to send telemetry to the Collector

Create a configuration

Create dapr-config.yaml:

apiVersion: dapr.io/v1alpha1
kind: Configuration
metadata:
  name: tracing
  namespace: default
spec:
  tracing:
    samplingRate: "1"
    otel:
      endpointAddress: "otel-collector.opentelemetry.svc.cluster.local:4317"
      isSecure: false
      protocol: grpc

Apply it:

kubectl apply -f dapr-config.yaml

Annotate your application(s)

In each Deployment/Pod you want traced by Dapr, add:

metadata:
  annotations:
    dapr.io/config: "tracing"

Verify the setup

Check that the OpenTelemetry Collector is running:

kubectl get pods -n opentelemetry

Check the collector logs to ensure it’s receiving and forwarding telemetry:

kubectl logs -n opentelemetry deployment/otel-collector

Deploy a sample application with Dapr tracing enabled and generate some traffic to verify traces are being sent to Dash0. You can use the Dapr Kubernetes quickstart tutorial for testing.

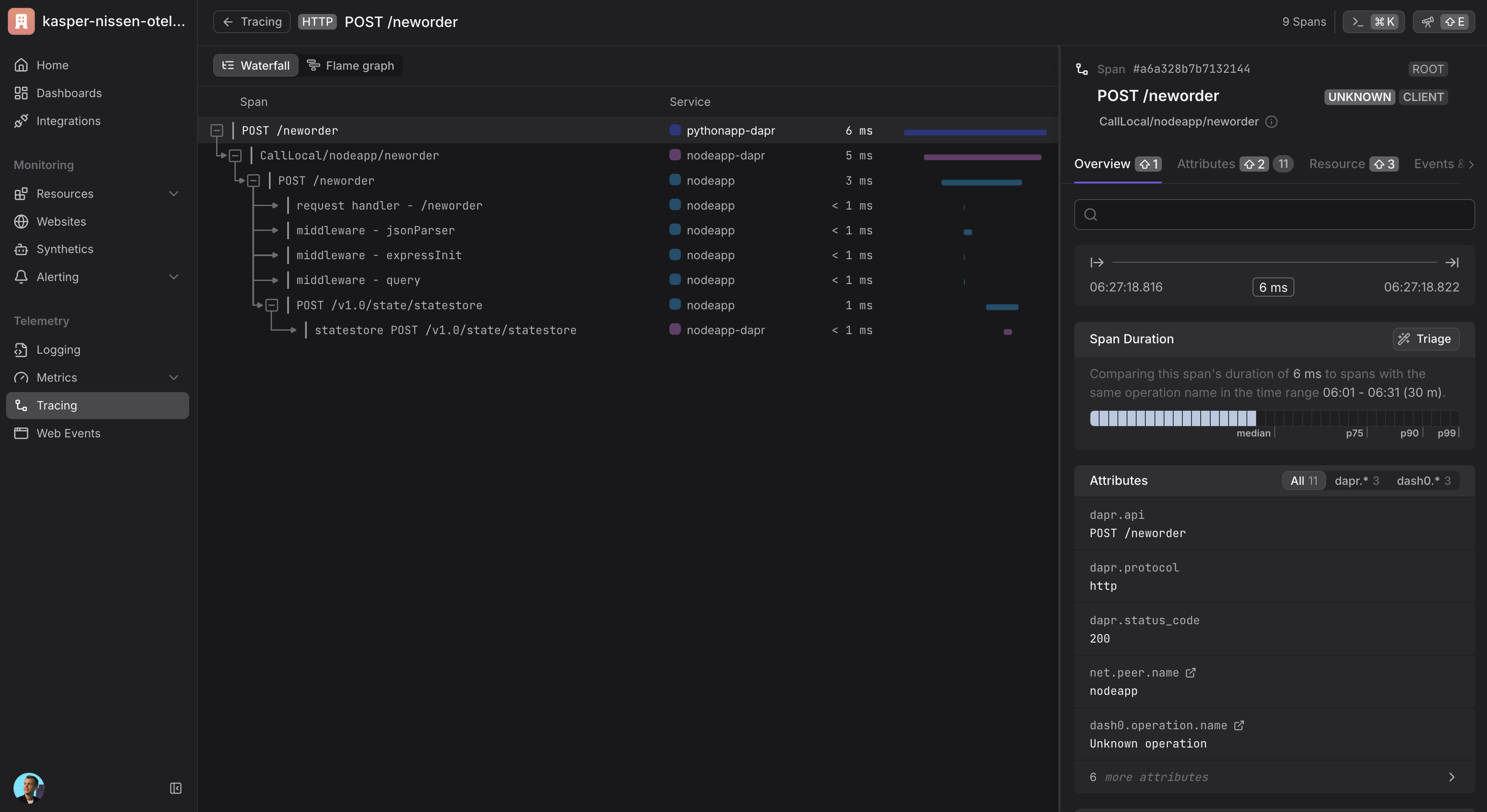

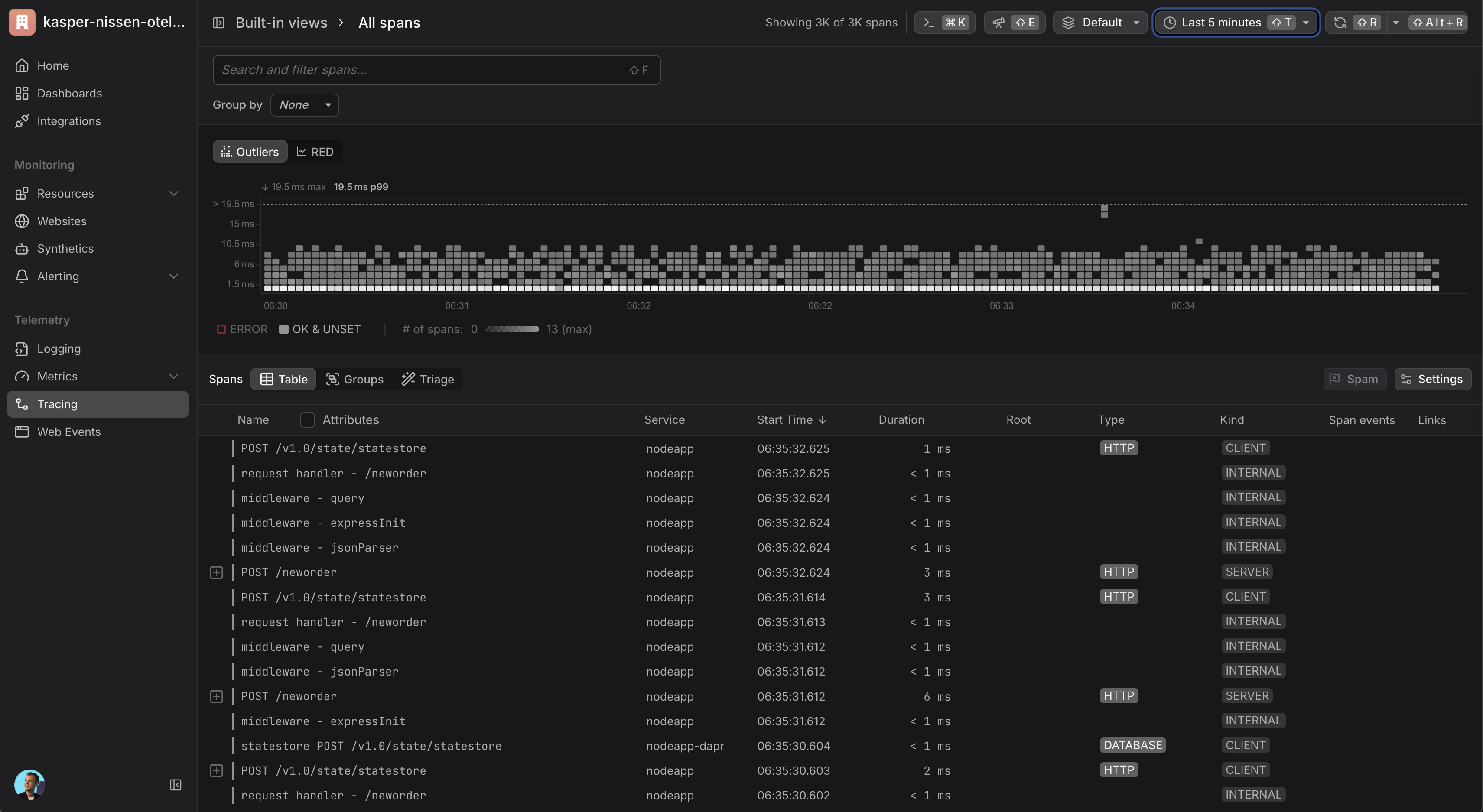

Viewing traces

Once your setup is complete and telemetry data is flowing, you can view traces in Dash0:

Navigate to your Dash0 account
Go to the Traces section
You should see distributed traces from your Dapr applications
Use filters to narrow down traces by service name, operation, or time range

Cleanup

helm -n opentelemetry uninstall otel-collector
kubectl -n opentelemetry delete secret dash0-secrets
kubectl delete ns opentelemetry
